How to load screen configuration files onto your video wall using NovaLCT
In this article, we will be addressing how to upload screen configuration files onto NovaLCT.
Step 1: Identify the location of your specific screen configuration file. The file type will always be ".scr"
Step 2: Log in to NovaLCT.

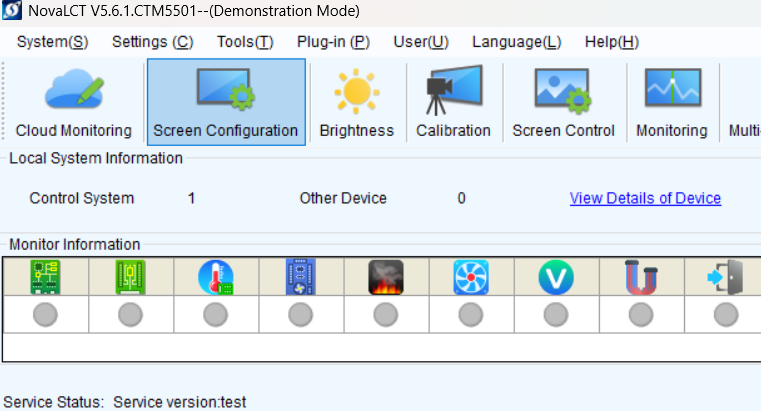

Step 3: Once you are logged in, click on the Screen Configuration button.
Step 4: On “Select Communication Port”, it should already be set to either USB or Ethernet depending on your connection to the video processor. If not, please ensure your cable is connected properly.
Step 5: Ensure “Configure Screen” is selected and click “Next”.
Step 6: The “Screen Configuration-______” Window will appear. Select the tab “Screen Connection”.

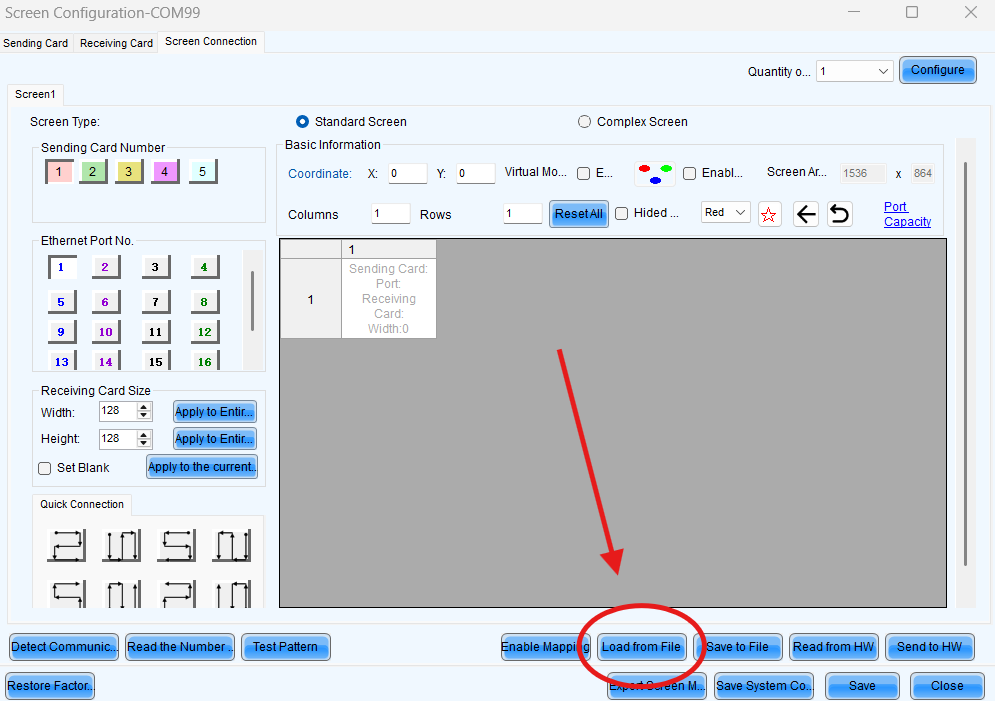

Step 7: Upon entering this section, click the “Load from File” button, located at the bottom.
Step 8: The program will now prompt you to upload your screen configuration file to NovaLCT. Locate your specific file and click “Open”.
Step 9: Once the configuration file is mapped out in front of you, click the “Send to HW” button at the bottom right.

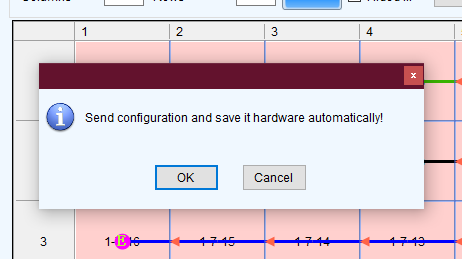

If there is a popup saying “Send configuration and save it hardware automatically!", click “OK”.

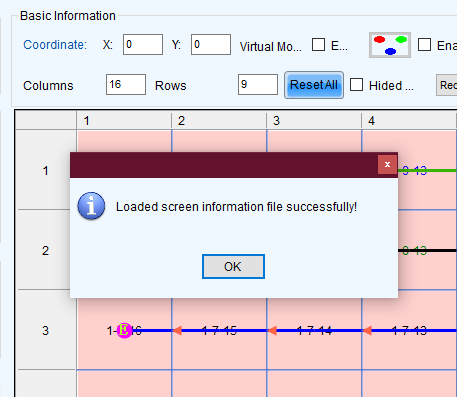

Step 11: Click “OK”.
Step 12: Now locate the “Save” button and click it.

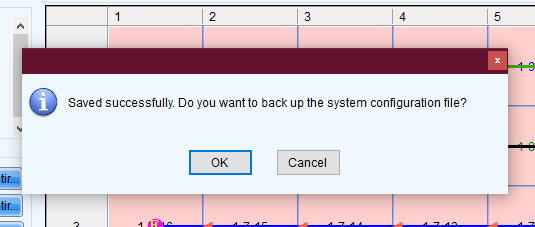

If it asks if you would like to back up the system configuration file, click “OK”.

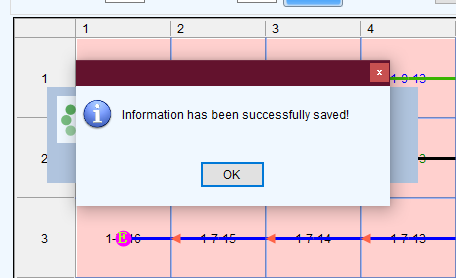

Step 13: Close the prompt.
Step 14: Click “Close” at the bottom right.
